Ultra fast Joule heating long-term insulation max 2500℃
Flash Joule heating 2500℃

Ultra fast Joule heating long-term insulation max 2500℃

Product introduction

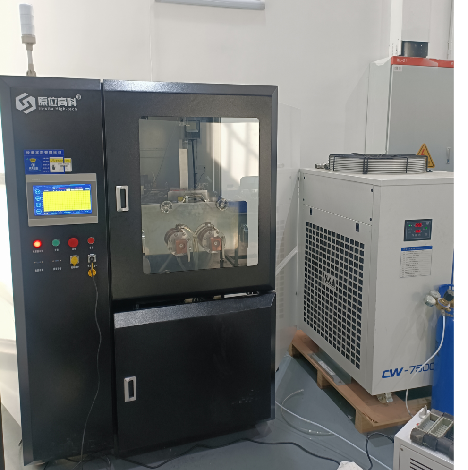

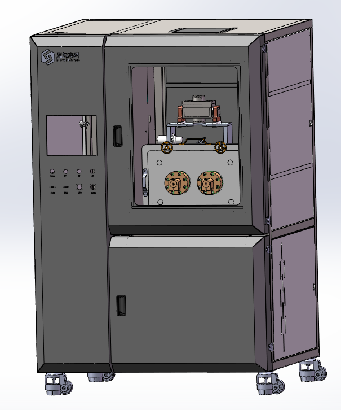

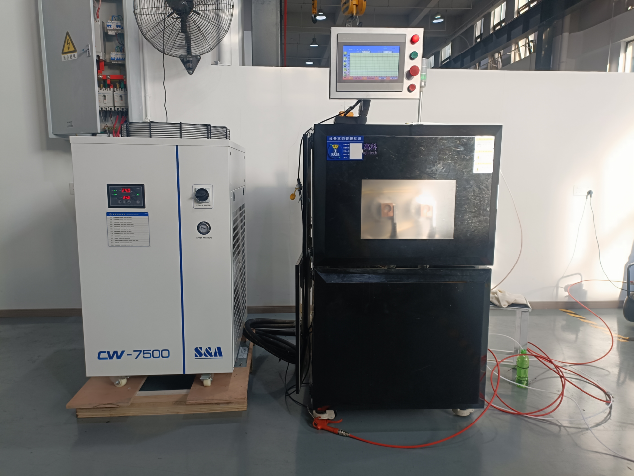

Thermal insulation Joule heating device is a fast heating, energy saving and environmental protection equipment, with long holding time, accurate temperature control, single processing capacity of the characteristics, and the device has a complete sealed stainless steel heating chamber, the chamber adopts double-layer issue structure design, including water cooling structure, and equipped with water cooling power supply to provide protection for the good operation of the heater

Product parameters and characteristics

Product Parameter
Machine sizeWidth*depth*height1200*1100*1950mm
Power supply specifications380V 50HZ
Machine powerJoule heat machine 54KW, vacuum pump 1.1KW, water cooler 8.9KW
Heating volume50 ml
Target temperature2500℃ (vacuum environment about 0.5 h, argon environment 10h)
2400℃ (vacuum environment for about 4 hours)
Temperature control accuracy±2 ℃
Heating rate40℃/S (MAX)
Maximum inflation pressure50 kPa
Chamber vacuum≥10 Pa（Leak detection ≥5pa, high temperature heating ≥50pa)
Gas circuit setting2 air intakes, 1 vacuum, 1 exhaust
Power supply cooling methodWater Cooling
Temperature measurement methodInfrared temperature measurement (range 150-3200℃)Thermal imaging temperature measurement optional）
Data collection cycle5ms
Data collection methodTouch screen + PC
Data collection contentReal-time temperature, real-time voltage, real-time current, real-time pressure
