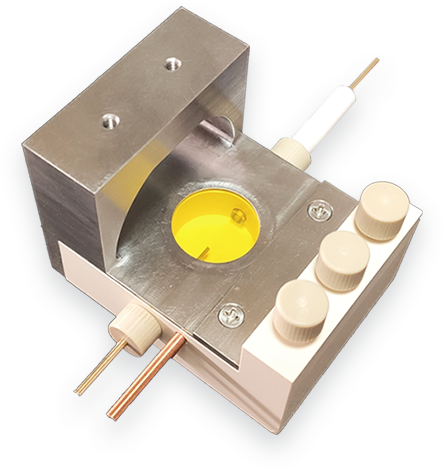

In situ XRD electrochemical reaction cell

Product introduction

In-situ XRD electrochemical reaction cell is mainly used to study the phase structure changes of electrode materials in liquid phase three or two electrode environment.

Online Inquiry

Equipped with gas phase inlet and outlet

Good sealing performance

PEEK or PTFE material

$Wide diffraction angle range$

Wide diffraction angle range

Product parameter

Liquid-phase three electrode (or two electrode) electrochemical reaction, sample size 5-10 mm electrode sample (need to be loaded on carbon paper);

Equipped with gas inlet and outlet to ensure the flow of gas during the reaction process;

Equipped with Ag/AgCl electrode, glass carbon electrode and platinum wire electrode of which the working electrode is glass carbon electrode;

Good sealing;

Diffraction Angle range:10°<2θ<100°;

PEEK or PTFE material (optional);

Can match different brands of diffractometer models.
